FL18COB3030
Product inquiry →
Soft White
3000–4000 K; 150 lm/W. Residential, office, retail, hospitality, decorative and architectural lighting.
Download datasheet (PDF)Product inquiry →
Chip-on-Board LEDs
A 30 mm chip-on-board platform, across the CoB product range.
Polymatech CoB components, manufactured in India and available from Nisene in the United States.
The CoB product range covers white, blue, hyper-red, dual-band blue-plus-red, dual-band blue-plus-near-infrared, dual-band blue-plus-green, UV-A and UV-C categories on 30 mm platforms. Electrical, optical and thermal characteristics vary by configuration.
Technical specifications shown on this page were supplied by Polymatech Product Development. Product specifications and availability are subject to change.
Common technical specifications
Common characteristics supplied by Polymatech Product Development for the configurations below.
| Category | Optoelectronics LED CoB engines |
|---|---|
| Manufacturer | Polymatech |
| Maximum voltage | 27 V |
| Maximum current | 700 mA |
| Power consumption | 10 W–54 W |
| Temperature test | 100°C |
| Viewing angle | 120° |
| Size / dimensions | 30.00 × 30.00 × 1.00 mm |
| Light-emitting surface | 17.00 mm diameter |
| Configuration | Square |
| Packaging | Box |
| Lens type | Flat |
| Features | IP67 |
| Compliance | RoHS |
Chip-on-board products
Product descriptions and applications below reflect the technical information supplied by Polymatech Product Development.
Product photographs are indicative representations of the respective CoB categories.
FL18COB3030
Product inquiry →

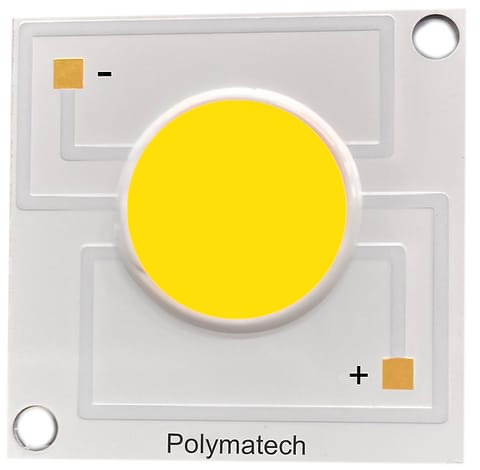

Always White
4000–7000 K; 150 lm/W. General, architectural, commercial and industrial lighting, indoor and outdoor luminaires.
Download datasheet (PDF)Product inquiry →
FL18COB3030
Product inquiry →
Warm White
2700–3500 K; 150 lm/W. Hospitality, residential, decorative, retail and architectural lighting.
Download datasheet (PDF)Product inquiry →
FL18COB3030
Product inquiry →
Surgical White
White-light CoB intended for specialized illumination applications.
Download datasheet (PDF)Product inquiry →
FL18COB3030
Product inquiry →
Blue 450 nm
General illumination, specialty lighting, horticulture and controlled-environment applications.
Download datasheet (PDF)Product inquiry →
FL18COB3030
Product inquiry →

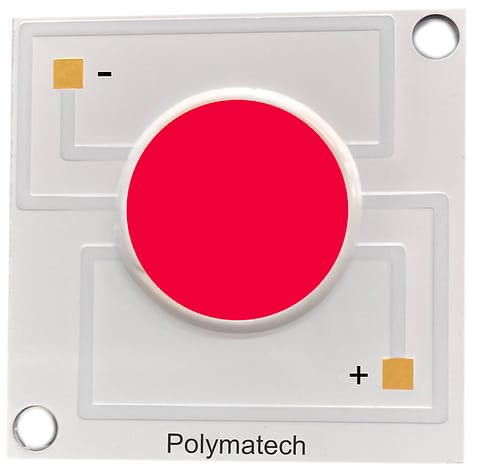

Horticulture Red 650 nm class
Horticulture, greenhouse, vertical-farm, indoor-farm and controlled-environment lighting for plant growth and flowering.
Download datasheet (PDF)Product inquiry →
FL18COB3030
Product inquiry →

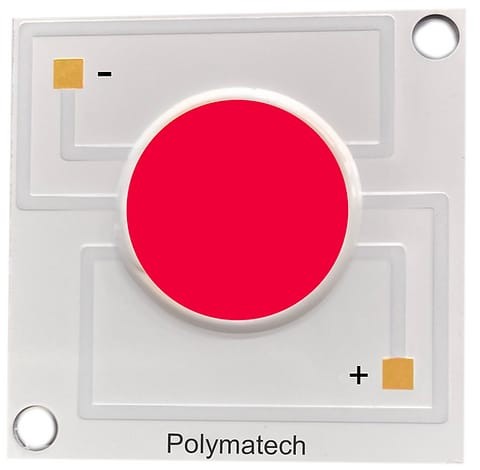

Red + IR
Combined red and infrared CoB configuration.
Download datasheet (PDF)Product inquiry →
Polymatech CoB
Product inquiry →
IR + Blue
450 nm blue + 750 nm infrared. Horticulture, controlled-environment agriculture, indoor and vertical farming, greenhouse lighting.
Download datasheet (PDF)Product inquiry →
Polymatech CoB
Product inquiry →

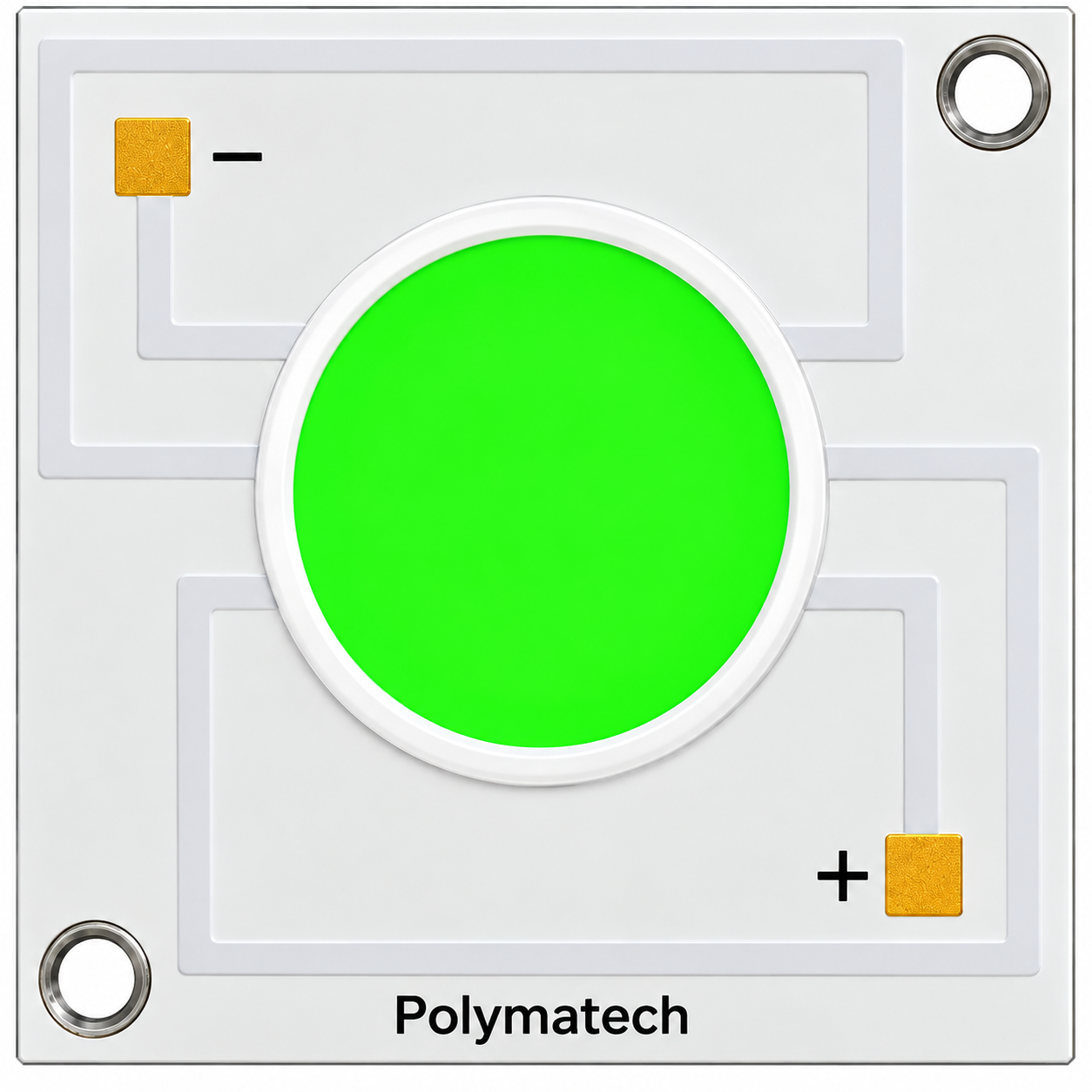

Blue + Green
450 nm blue + 550 nm green. Horticulture, controlled-environment agriculture, indoor and vertical farming, greenhouse lighting.
Download datasheet (PDF)Product inquiry →
Polymatech CoB
Product inquiry →
Horticulture Blue + Red 450 + 650 nm
Dual-band plant grow-light CoB. Vertical and indoor farming, seedlings and propagation, greenhouse, tissue culture, algae cultivation and planted aquariums.
Download datasheet (PDF)Product inquiry →
Polymatech CoB
Product inquiry →
Red Light Therapy 450 + 650 nm
For red-light therapy panels, lamps and wellness devices. Same product and order code as the Horticulture Blue + Red CoB. For integration by device manufacturers, who are responsible for regulatory clearance of the finished device.
Download datasheet (PDF)Product inquiry →
Polymatech CoB
Product inquiry →
Skin Care 450 + 650 nm
For LED skin-care masks, beauty panels and cosmetic devices. Same product and order code as the Horticulture Blue + Red CoB. For integration by device manufacturers, who are responsible for regulatory clearance of the finished device.
Download datasheet (PDF)Product inquiry →
FL02COB3030
Product inquiry →
UV-A 385 nm
UV curing, fluorescence excitation, inspection, forensic and industrial applications.
Download datasheet (PDF)Product inquiry →
FL09COB3030
Product inquiry →
UV-C 270 nm
Germicidal, surface-disinfection, air-treatment, water-treatment and sterilization-system applications.
Download datasheet (PDF)Product inquiry →
Product-specific specifications
Approved technical information supplied by Polymatech Product Development.
| Product | Wavelength / CCT | Optical efficacy | Applications |
|---|---|---|---|
| Always White | 4000–7000 K | Configuration-specific | General, architectural, commercial and industrial lighting; indoor/outdoor luminaires |
| Warm White | 2700–3500 K | Configuration-specific | Hospitality, residential, decorative, retail and architectural lighting |
| Soft White | 3000–4000 K | Configuration-specific | Residential, office, retail, hospitality, decorative and architectural lighting |
| Blue CoB Series | 450 nm | — | General illumination, specialty lighting, horticulture and controlled-environment applications |
| Horticulture Red CoB Series | 650 nm class | — | Horticulture, greenhouse, vertical-farm, indoor-farm and controlled-environment lighting; plant growth and flowering |
| IR + Blue | 450 nm + 750 nm | — | Horticulture, controlled-environment agriculture, indoor farming, vertical farming, greenhouse lighting and plant development |
| Blue + Green | 450 nm + 550 nm | — | Horticulture, controlled-environment agriculture, indoor farming, vertical farming, greenhouse lighting and plant development |
| UV-A CoB Series | 385 nm | — | UV curing, fluorescence excitation, inspection, forensic and industrial applications |
| UV-C 270 nm CoB Series | 270 nm | — | Germicidal, surface-disinfection, air-treatment, water-treatment and sterilization-system applications |
Ultraviolet product safety
UV-A
Ultraviolet radiation can cause eye and skin injury. Do not look directly at an energised emitter. The integrator must provide shielding, interlocks, warning labelling and a completed system-level risk assessment appropriate to the finished product.
UV-C 270 nm
UV-C radiation can cause serious eye and skin injury. Exposure must be prevented by design. This platform is intended solely for integration by qualified equipment manufacturers, who are responsible for shielding, interlocks, warning labelling and a completed system-level risk assessment.
The listed applications identify intended integration categories. Finished-system dose, exposure control and efficacy must be established by the equipment manufacturer.
Datasheets
United States editions, one per product.
Datasheet
Soft White CoB
United States edition. PDF.
Download PDFDatasheet
Always White CoB
United States edition. PDF.
Download PDFDatasheet
Warm White CoB
United States edition. PDF.
Download PDFDatasheet
Surgical White CoB
United States edition. PDF.
Download PDFDatasheet
Blue 450 nm CoB
United States edition. PDF.
Download PDFDatasheet
Horticulture Red 650 nm class CoB
United States edition. PDF.
Download PDFDatasheet
Red + IR CoB
United States edition. PDF.
Download PDFDatasheet
IR + Blue CoB
United States edition. PDF.
Download PDFDatasheet
Blue + Green CoB
United States edition. PDF.
Download PDFDatasheet
Blue + Red 450 + 650 nm CoB
United States edition. PDF.
Download PDFDatasheet
UV-A 385 nm CoB
United States edition. PDF.
Download PDFDatasheet
UV-C 270 nm CoB
United States edition. PDF.
Download PDFDatasheet
White CoB, 5633 K engineering datasheet
United States edition. PDF.
Download PDFDiscuss a chip-on-board LED requirement
Tell us the required wavelength or colour temperature, optical output, electrical operating conditions, application, order quantity and thermal-design requirements.
